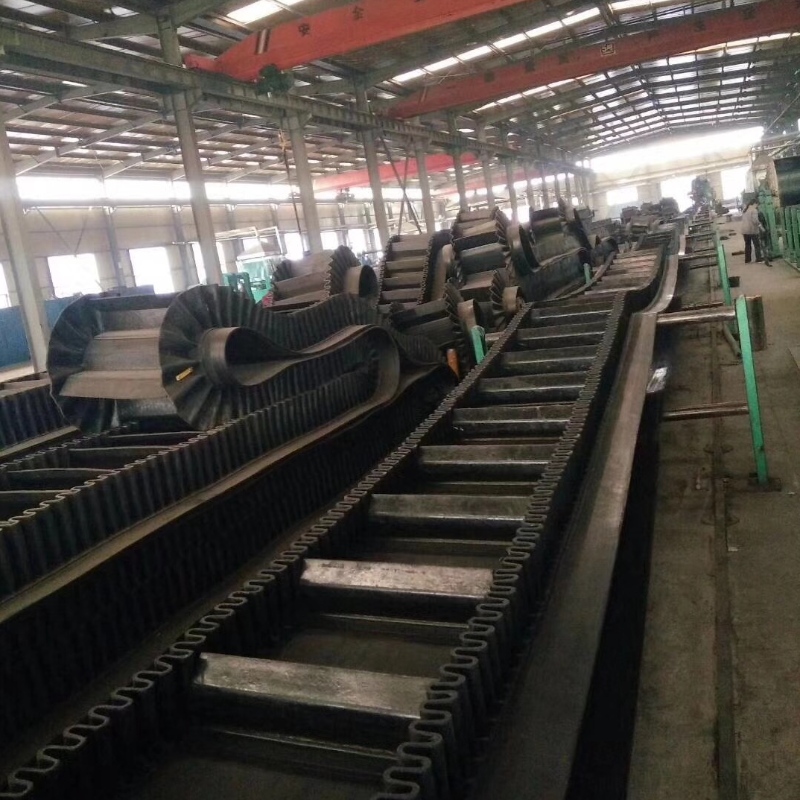

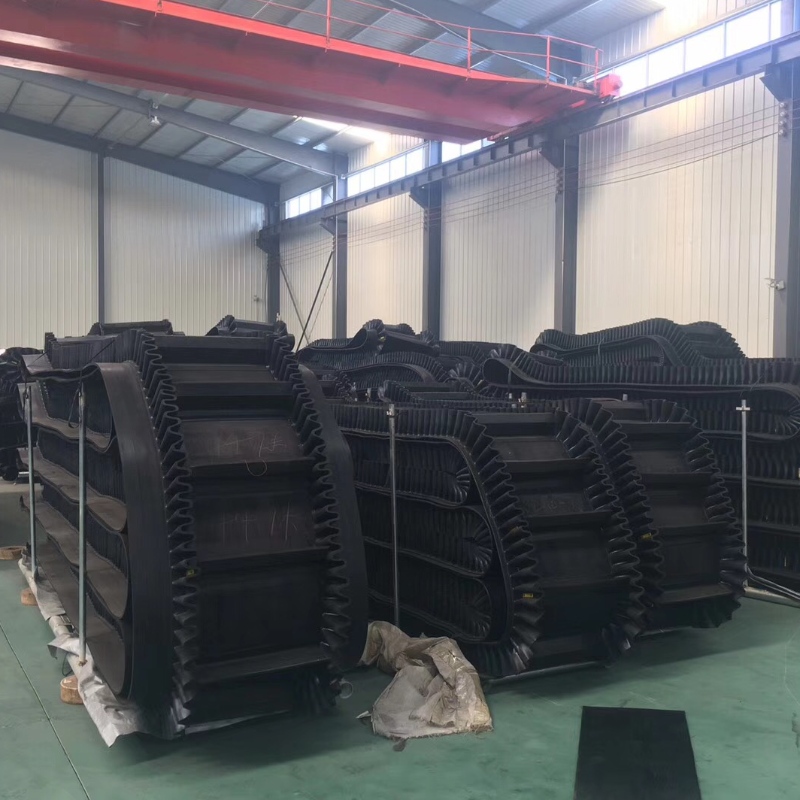

Corrugated Sidewall Conveyor Belt

Structure:  three parts

1. Base Belt: top cover rubber, bottom cover rubber, reinforced core, cross rigid

2. Sidewall: S type

3. Cleat: C type and TC type

Feature:

Corrugated Sidewall Conveyor Belt is one of the most effective ways of elevating materials in a confined space, the economy is achieved  by single side belt operation, wide range of materials can be handled, less space requirement, no transfer point, low maintenance , and big capacity. Corrugated sidewall conveyor belt can be design into a complete transportation system according to the applications.

Applications:

Construction industry, Potash and salt mining, Stones and earth, Fertilizer, Chemical industry, Recycling industry, Rural co-ops and traders in agricultural commodities, agriculture.

Standards:

Sidewall Conveyor Belt Can be manufactured following various standards: GB/T7984, GB/T10822, HG3714, HG3782, DIN2210, AS1332, JISK6322.

Belt Construction Nomenclature Example:

EP500/2-600-4+2.5 GB/T7984-L

>EP: Fabric designation

>500/2: belt’s longitudinal breaking strength 800N/mm

        4 plies of EP fabric

>600: Belt width in mm

>4+2.5：Top and bottom cover gauges( Thickness)

>GB/T7984-L: Belt standard and cover grade

S 120-75

>S: Sidewall type

>160: Height of sidewall

>140: Width of free zone

TC 110-350-360

>TC: Heat type

>110: Height of cleat

>350: Width of heat  ( Effective width of belt)

>360: Pitch of heat
