Fabric Conveyor belt

Classification of Performance: General belt; Oil resistant, Heat resistant, Chemical resistant; Fire Resistant; Cold Resistant;  Abrasion Resistant; High Temperature Resistant.

Stucture: Cut edge/ Mould edge

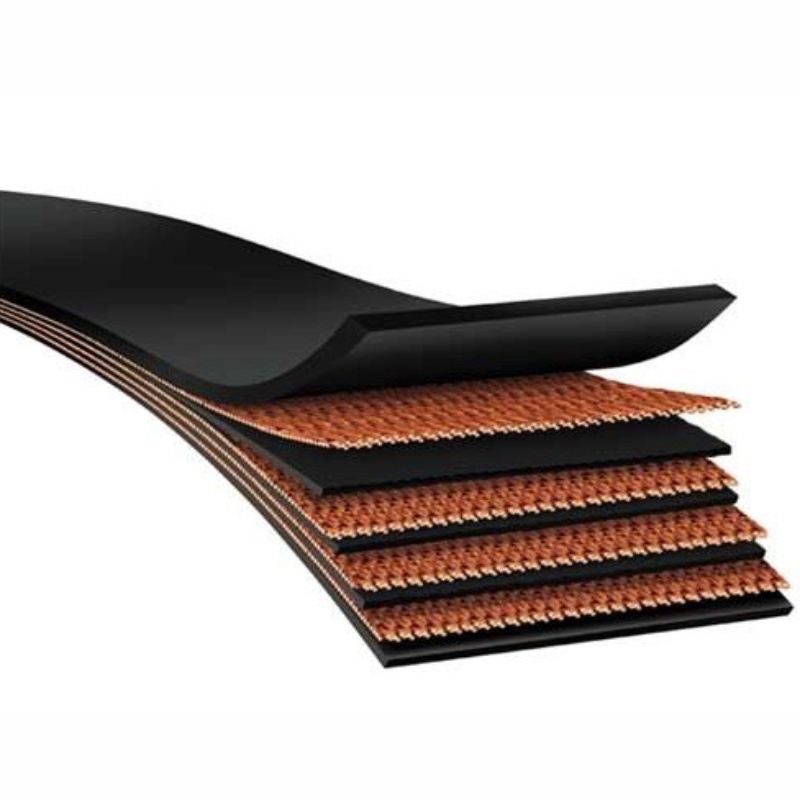

Feature: Layers of specially designed fabric plies are sandwiched between rubber skim coats for adhesion and load support. Top and bottom cover compounds are added for maximum protection of the belt carcass. Belts can be manufactured according to various international fabric standards, at different rating and wide variety of cover grades.

Applications: Belt applications involve in all kind of industries such as mines, power plants, construction, ports, chemical industries.

Standards: Can be manufactured following various fabric standards: GB/T7984, GB/T10822, HG3714, HG3782, DIN2210, AS1332, JISK6322

Belt Construction Nomenclature Example:

EP800/4-1200-6+2 GB/T7984-L

>EP: Fabric designation

>800/4: belt’s longitudinal breaking strength 800N/mm

        4 plies of EP fabric

>1200: Belt width in mm

>6+2：Top and bottom cover gauges( Thickness)

>GB/T7984-L: Belt standard and cover grade
