Cold Resistant Conveyor belt
Features:
The belt uses EP canvas,nylon canvas or cotton canvas as carcass,cover rubber selects a blend of Nature rubber and Butadiene rubber,which has the properties of excellent elasticity,shock resistance,cold resistance,etc.It can work normally under the conditions of -60℃.
Application:

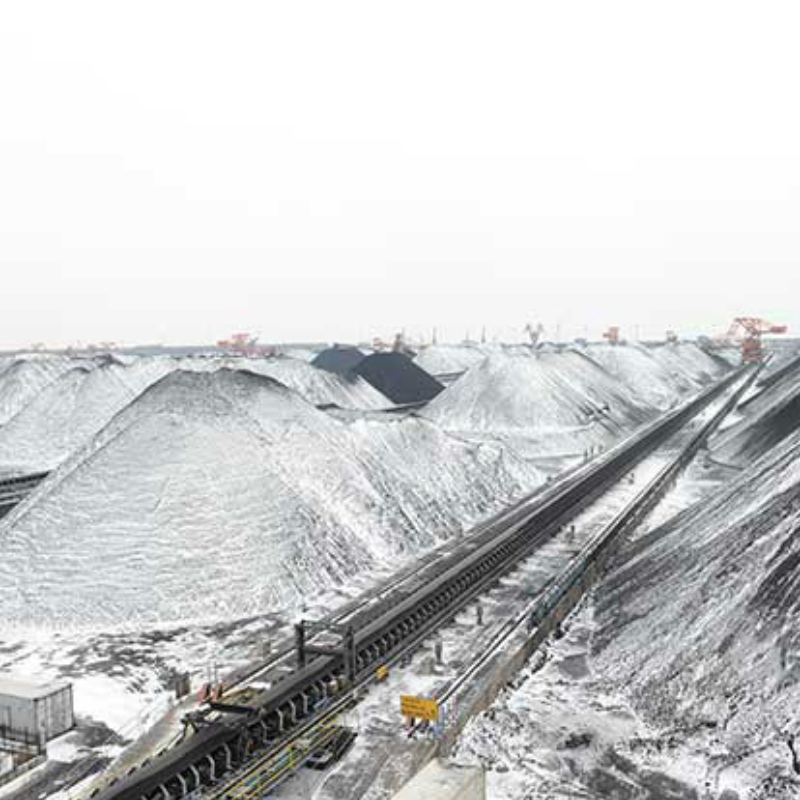

Suitable for conveying materials outdoors in cold region or refrigeration storage,etc.
Belt Construction Nomenclature Example:
EP800/4-1200-6+2 C1
>EP: Fabric designation
>800/4: belt’s longitudinal breaking strength 800N/mm
4 plies of EP fabric
>1200: Belt width in mm
>6+2:Top and bottom cover gauges( Thickness)
>C1:Cold Resistant -45℃ to +50℃
Technical Data:
The cold resistant conveyor belt is divided into two classes,C1 and C2:
1) C1 class belt is applicable to environment temperature from -45℃ to +50℃.
2) C2 class belt is suitable for environment temperature from -60℃ to +50℃.
