Heat Resistant Conveyor Belt

Feature:

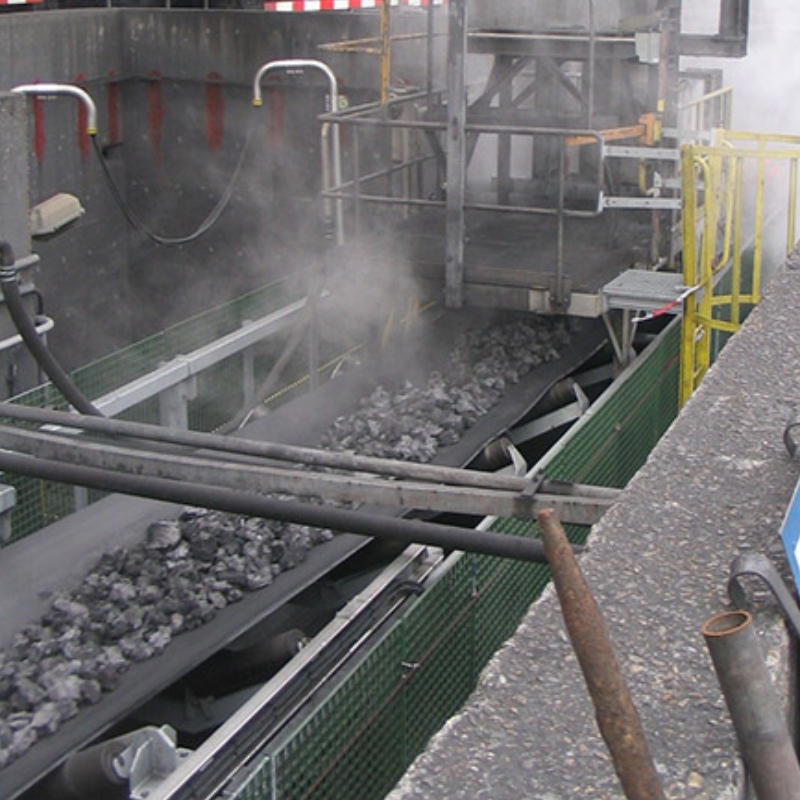

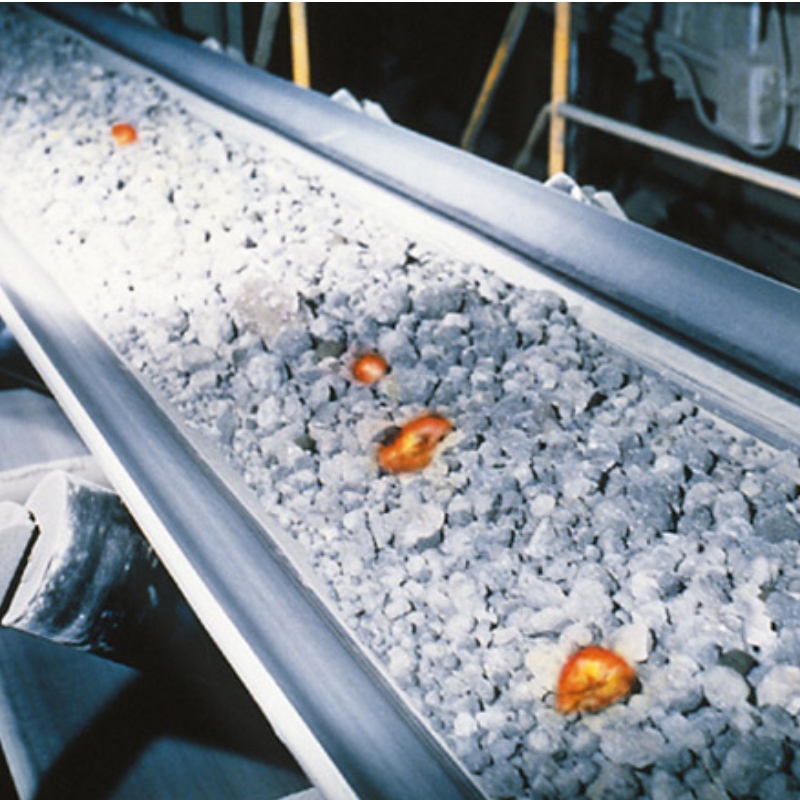

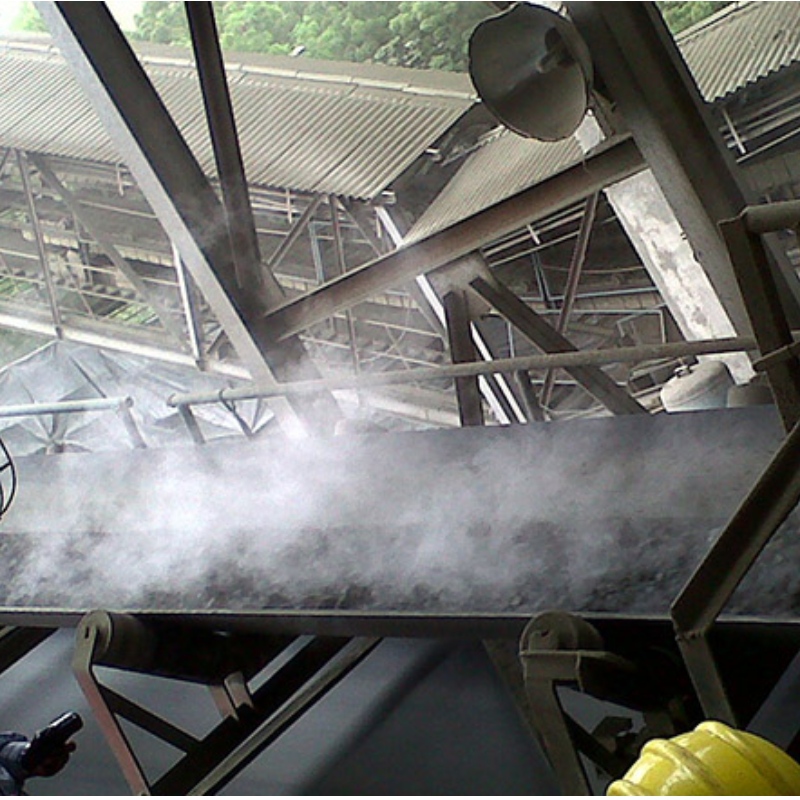

Belt carcass can be high modulus low shrinkage EP fabric, or impact weft wire mesh or steel cord. Carcass is protected with modified SBR EPDM cover compounds which have excellent thermal stability. Can be used to convey material with temperature to 300 ℃ in steel plants,Cement factories, and high temperature powders and lumps.

Product Classifications:

According to temperature range of  material conveyed heat resistant belts can

Belt Construction Nomenclature Example

EP800/4-1200-6+2 T3

>EP: Fabric designation

>800/4: belt’s longitudinal breaking strength 800N/mm

        4 plies of EP fabric

>1200: Belt width in mm

>6+2：Top and bottom cover gauges( Thickness)

>T3: cover grade(T3)

Note:

Recommend to use impact wire mesh for carcass, combined with heat resistant and ageing resistant cover compounds, will be more suitable for conveying high temperature materials
